EVOLIS Vision: Radar speed display signs

evolis-11

Join the movement to make exemplary road safety a reality with our EVOLIS electronic speed radar signs. With advanced radar speed display and speed indicator technology, our digital speed limit signs are the epitome of precision and compliance. Trust in EVOLIS Vision to significantly reduce speeds by 25%.

  • LED display: Promote safer driving and secure a definitive impact on passing drivers with our crystal-clear display using long-range LEDs.
  • Data collection: Discover the perfect solution for monitoring traffic and identifying speed infringements with our sophisticated electronic radar speed signs. Effortlessly regulate traffic flow with EVOLIS Vision.
  • Variable message: Keep drivers informed and educated about their speed instantly with real-time updates on our LED screens. Choose between a friendly smiley or a cautionary exclamation triangle to convey your personalised message.

Do you have a question about installing an EVOLIS Vision Speed Indicator Device? Need a quote?

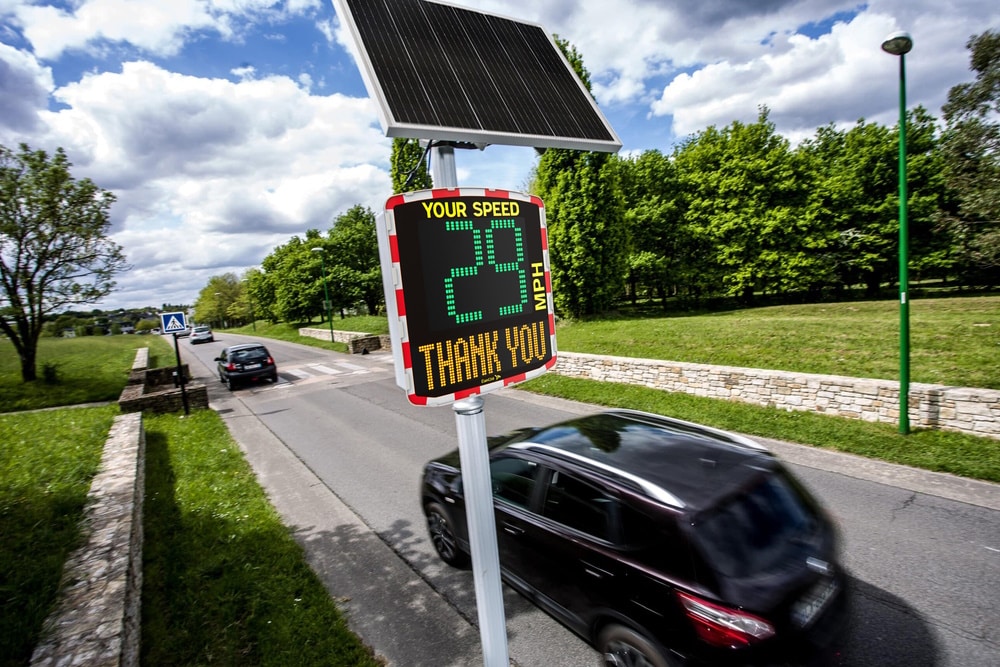

EVOLIS Vision: LED radar speed signs in action

From motorways to city streets, our LED radar speed signs keep drivers informed, making roads safer for all. By providing real-time speed displays, drivers are immediately alerted to excessive speeds. Empower drivers in your community with a digital radar speed sign system offering a potent and enduring solution for safer roads. Enhance road safety with the EVOLIS Vision digital radar speed sign, a model endorsed by mayors from various cities, trusted in over 10,000 communities worldwide, with more than 30,000 units installed globally.

Radar speed sign specifications

Display specifications
Configuration
Power specifications
Traffic statistics
Other technical information

Speed digits

Speed digits3 digits (0 to 199)
Dimensions380 x 450 mm
ColoursGreen, amber and red
Visibility3-row thick LEDs

Smileys

ColoursGreen and red
Dimensions300 x 300 mm

Message/Graphic display

Dimensions160 x 640 mm (H x W), 1 line of 8 characters/2 lines of 11 characters
ColourAmber
Programmable messagesText and pictograms

LEDs

OSRAM CMSHigh-luminosity, ultra-low consumption
Service life> 100,000 hours

Photosensitive cell

Photosensitive cell High-precision sensor for adaptation to light

Configuration settings

LocalUSB and Bluetooth® (PC or Android/IOS mobile appliance with the mobile app)
Selector dial for pre-set speed bands
Remote4G modem with web interface (for the operational status of the appliance and statistical analysis)

Batteries

BatteriesLead-acid 12 V/22 Ah
Weight for one battery6.2 kg
Dimensions for one battery181 x 76.2 x 167 mm (L x W x H)

Charging by solar panel

Power100 W solar panel
Dimensions806 x 680 x 35 mm (L x W x H)
OtherMonocrystalline high-output cells
Smart charging management

Charging from street lighting or grid

Internal power220 V
OtherSmart charging management
Integrated protection fuse

Traffic statistics

AnalysisIn both traffic directions (incoming/outgoing)
DataAverage and maximum speeds, number of vehicles, time stamps and percentiles (V30/V50/V85)
Memory16 Mb. Up to 5 million vehicles can be recorded.
OperationWith the software package. Output exportable in Microsoft Excel, CSV or PDF format.

Housing

Dimensions710 x 770 x 160 mm (W x H x D), with two battery slots
Weight9.2 kg (excl. batteries)
MaterialABS resin, anti-UV, one-piece injection moulded body
ColourGrey, through dyed
Ingress protectionIP65
SecurityLock and specific key, with provision for padlock
User accessExternal access to batteries, the speed change interface and the USB port. Secured by two locks.

Front face

MaterialPolycarbonate with a non-reflective surface
Decoration and textRegulatory red and white border with silkscreened text
“Your speed”Reverse silkscreen printing
ShapeConvex for optimum protection against projectiles

Detection

RangeUp to 300 metres
AccuracyWithin 1%
Angle of detection33 degrees
Frequency24.200 GHz

Compliance

RED Directive 2014/53/EU

RoHS Directive 2011/65/EU

WEEE Directive 2012/19/EU

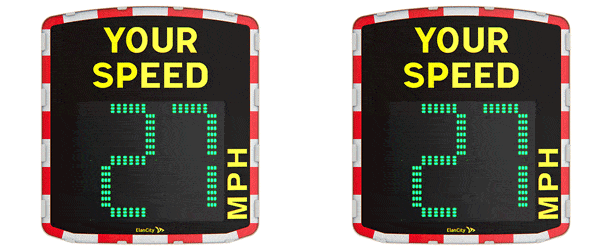

Discover EVOLIS Mobility as well!

The Portable Speed Indicator Device, without text display. Available in triangle or smiley version.

evolis-mobility-en-gb
